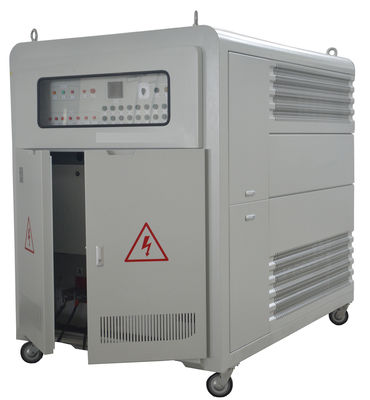

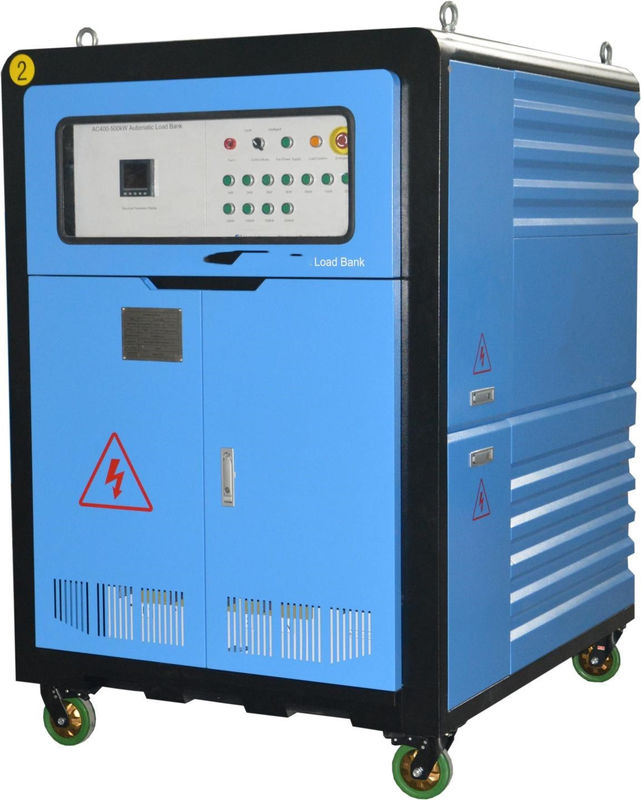

600KW Power Resistive Automatic Load bank For Generator Testing

Model

KL600

Display accuracy

Level 0.5

Control Power

External power 380VAC 3 phase 4 wire 50Hz

Wire Connection

Load bank input--busbar (star coupling "Y") Control power input--terminal block

Communication Interface

RS232/RS485

Insulation

F

Way of Working

Continuous Working

Cooling

Forced air, horizontal air intake and upwards exhaust cooling

Transportation

With lifting eyes and wheel castors

Color

As customer's requirements or as our design

Dimensions

1550*1260*1680mm L×W×H

Weight

800KGS

Ambient Temperature

-20°C~+50°C

Relative Humidity

≤95%

Altitude

≤2500m

Atmospheric Pressure

86~106kPa

Contactor

Schneider

Fuse

MIRO

PLC

Siemens

Light Button

ABB

Relay

OMRON

Alloy Resistor

Kingway

Data Processing Software

Kingway

1) 3 line LED multi-function meter can display real-time voltage and current of three phase and each phase, resistive power, power factor, apparent power, frequency and running time of generating set.

2) User can pre-set the power then press the master load button.

3) Control mode: user can choose local control or intelligent control (through PC)

4) Control mode interlock: there is switch in control panel to choose control mode, other control mode is invalid if user choose one control mode.

1) Have emergency stop button.

2) In case of over-load, over-heat, short circuit, load bank will automatically remove load and give alarm.

3) Fan protection: Load bank could not load before power of fan is on.

4) Give alarm when any fan is abnormal or with insufficient air volume, etc.

5) Protection button: there are some protection buttons can be switched off when false alarm or for special requirements.

1) Automatic load: User can set several periods of power and duration and in turn of 0%→25%→50%→75%→100% or 110% then →75%→50%→25%→0%.etc to make automatic load testing.

2) Can make parallel testing for several units.

3) Data can be saved, could display real-time data and history data.

4) Charts and graphs can be exported in format of JPG while testing data exported in Excel and Word format, and all can be printed.

Meter Symbol Description: In the loading process, the machine can display real-time parameters by measuring instruments.

Display instrument operating area, the key diagram is as follows: Instrument has the upper, middle and lower three display windows, each value and unit symbol form the data. For example, the upper window shows 100.0V, it is to say phase A voltage is 100V.

F1, F2 and on the bottom, you can switch three windows and recycling display parameters.
English symbols meaning:
V: phase voltage symbol; Unit: V, and combined with K, M to kV MeV;
V LL: two symbols denote a line voltage; Unit: V, and combined with K, M to kV MV;
A: Current Symbol; Unit: A, and combined with K, M to kA, MA;
W: active power symbol; Unit: W, and combined with K, M to kW, MW;
Var: reactive power symbol; unit: Var, and combined with K, M to kvar, Mvar;
VA: Apparent power symbol; Unit: VA, and K, M combination kVA, MVA;
Hz: Frequency Symbol; Unit: Hertz;
PF: Power Factor symbol;
E: energy symbols; Unit: Ep (active power) kWh, Eq (reactive energy) kVAh, Es (apparent power) kVA;
3P3L: 3-phase 3-wire two components;
3V3A: 3-phase 3-wire three elements;
3P4L: three-phase four-wire;
